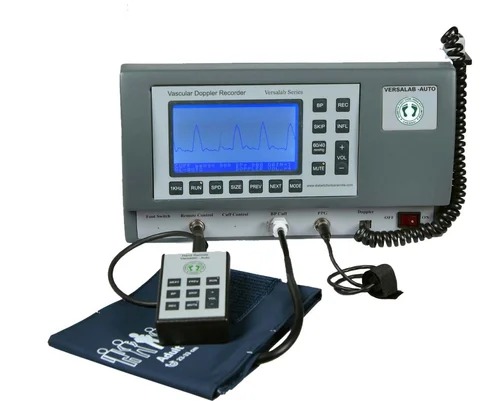

Versalab Automated AB Index Vascular Doppler Recorder

₹325,000.00

Sold By: Diabetik Foot Care India Private Limited

Product Specification

Model Name/NumberVERSALAB Auto
Machine ConditionNew
PortableYes
ApplicationHospital, Clinical, Veterinary
Instrument TypeBench-top
Mode SettingsWave form
Frequency(MHz)4 MHz, 5 MHz, 8 MHz
Doppler ModeContinuous Wave
Waveform ModeSpectrum
Speaker Output(mW)350 mW
Warranty1 Year
Is It PortablePortable
BrandVERSALAB
Weight8 (Kg)
Battery BackupNo
Number Of Transducer Sockets2
Accuracy+/- 5mmHg
SegmentalYes. Possible
TBI CalculationBy Software
Other measurementPenile Flow
Blood PressureBuilt-in Pump
DopplerUni-Directional
Toe SensorPPG Toe Sensor
BP Range30 - 300mmHg
Country of OriginMade in India
Minimum Order Quantity1


Product Description

We offer our customers performance-oriented Automated A.B. Index Vascular Doppler Recorder Versalab Auto, which is also PC based Automated ABI Doppler Versalab Auto. This fully automatic blood pressure measuring instrument has a noiseless BP pump that accurately measures the BP using simpler and user-friendly operations. Leading Exporter, Wholesale supplier of ABI Doppler Recorder to measure ABI and TBI automatically.Measurement of ABI, TBI, Segmental Pressure, PVR, Toe pressure are very much possible with this unit.

Among our efficient range of vascular Doppler’s, another stunning device is the automated Versalab. The device is a fully automatic diabetic unit which is used to measure ABI, TBI, PVR, segmental BP, upper extremity, carotid study penile study (PBI). It contains PC software for storage of data and regeneration of reports.

Features:

  • Automated ABI & TBI measurement
  • Doppler with 8MHz Unidirectional probe
  • Toe PPG sensor
  • Arterial & Venous Doppler
  • Silent pump makes the inflation of the BP cuff noiseless
  • PVR, Segmental. Penile Brachial Index, Upper Extremity and Carotid exams
  • PC software for storage and printout on A4 size plain paper
  • Light weight and portable




Other Details:



  • Automated ankle brachial index study
  • Silent pump makes the inflation of the BP cuff noiseless
  • First indigenous doppler with automatic BP measurement
  • Measures all systolic BP of the extremities
  • Segmental cuff sets with manometer for ankle brachial index
  • Separate mode for complete vascular profile study
  • 8 MHz unidirectional doppler transducer
  • Photo plethysmography (PPG) for toe pressure measurement
  • Special Toe cuff is supplied
  • Penile flow study
  • Gets connected on to any computer (computer not included) through RS 232 serial port or USB port
  • PC software for storage and printout on A 4 size plain paper
  • Digital thermal array printer is an optional
  • Large LCD screen makes the measurement easy
  • All the parameter displayed on the LCD screen
  • Standards matching International specification
  • Light weight and portable




Specifications:

  • Dimensions (H,W,L) : 295 x 320 x 175mm
  • Doppler Probe: 8MHz Unidirectional
  • Doppler Shift Frequency: 50Hz to 5KHz
  • Photoelectric PPG Sensor
  • Operates in Mains Supply
  • Runs on Windows xp, Windows 7 & Windows 8 Computer
  •
