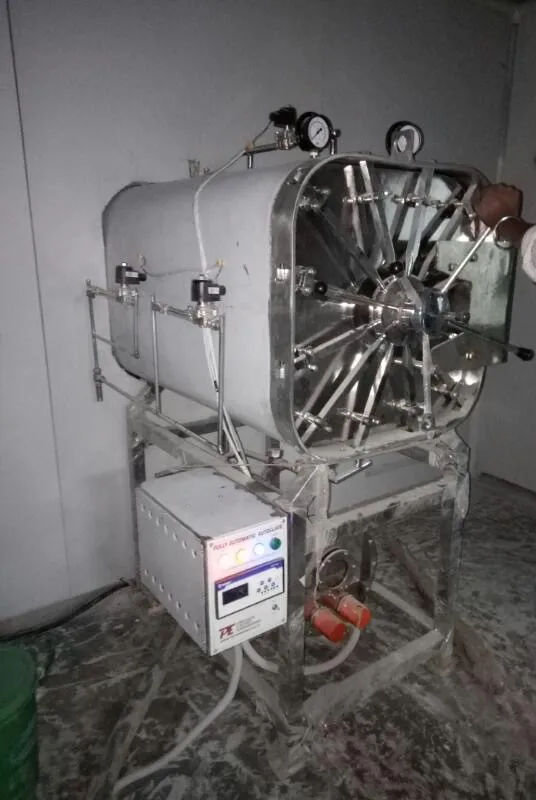

Stainless Steel Rectangular Autoclave

₹100,000.00

Sold By: Precious Techno Engineering

Product Specification

MaterialStainless Steel
Capacity180 Ltr
BrandPrecious Techno Engineering
Heater Load12 kW
ModelPTE - 108 - A
Operating PressureFrom 10 psi to 20 psi
Sterilization Temp and Pressure1.2 Kg/cm2 (15-18psi) at 121 Deg C
Inner Dimension18 x 18 x 36 Inch
Operating Temperature and Pressure Sterilizing Temperature121 Deg C
Minimum Order Quantity1


Product Description

Inner Chamber is made up of thick non-magnetic steel of 304/316 quality and jacket is made out of rolled steel. The single door made of rolled steel lined with S.S. sheet has a radial locking system. All units are hydraulically tested up to 40 psi. The space between outer cover made of thick rolled steel sheet and a steam jacket is filled with an asbestos sheet or glass wool to minimize thermal losses. The boiler is made of thick S.S. sheet and is located under the sterilizer. It is fitted with water level indicator, safety valve, pressure gauge, and water inlet and drain valves. The unit is fitted with low-water level cut-off device and automatic pressure control device. The door cannot be opened when the chamber is under pressure. Two separate valves are provided for evacuating steam from the inner chamber and jacket, as and when desired. Fitted with a dial thermometer and automatic vacuum breaker. Sterilization cycle is controlled by Multiport Valve. The unit is fitted with all standard accessories.
(Available)
Quantity
Request A Quote Reach out to the supplier now

Product Specification

MaterialStainless Steel
Capacity180 Ltr
BrandPrecious Techno Engineering
Heater Load12 kW
ModelPTE - 108 - A
Operating PressureFrom 10 psi to 20 psi
Sterilization Temp and Pressure1.2 Kg/cm2 (15-18psi) at 121 Deg C
Inner Dimension18 x 18 x 36 Inch
Operating Temperature and Pressure Sterilizing Temperature121 Deg C
Minimum Order Quantity1


Product Description

Inner Chamber is made up of thick non-magnetic steel of 304/316 quality and jacket is made out of rolled steel. The single door made of rolled steel lined with S.S. sheet has a radial locking system. All units are hydraulically tested up to 40 psi. The space between outer cover made of thick rolled steel sheet and a steam jacket is filled with an asbestos sheet or glass wool to minimize thermal losses. The boiler is made of thick S.S. sheet and is located under the sterilizer. It is fitted with water level indicator, safety valve, pressure gauge, and water inlet and drain valves. The unit is fitted with low-water level cut-off device and automatic pressure control device. The door cannot be opened when the chamber is under pressure. Two separate valves are provided for evacuating steam from the inner chamber and jacket, as and when desired. Fitted with a dial thermometer and automatic vacuum breaker. Sterilization cycle is controlled by Multiport Valve. The unit is fitted with all standard accessories.
