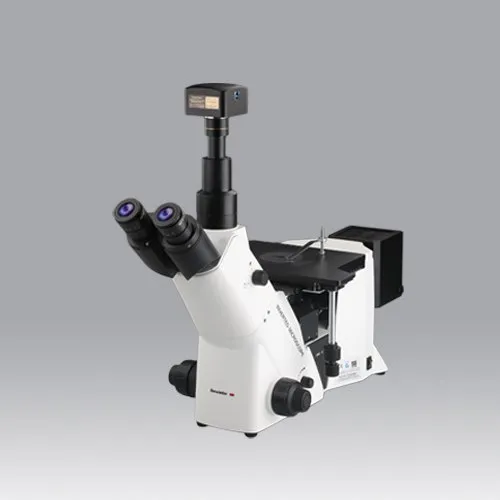

Inverted Metallurgical Microscope Model: DMI Victory

₹250,000.00

Sold By: Dewinter Optical Inc

Product Specification

BrandDewinter
Model Name/NumberDMI Victory
Mechanical Stage210mm X 180mm
Moving Range50mmX50mm
Interpupillary Distance53mm to 75mm
Eyepiece10X (paired) F.O.V. 22mm


Product Description

Trinocular Observation Head

  • Siedentopf observation head inclined at 45°.
  • Diopter adjustment ring on ocular tube (±5).
  • Inter-pupillary distance from 53mm to 75mm
  • Focusable vertical tube for Digital Microphotography.


Eyepiece (Anti fungus)
Wide yield10X (paired) F.O.V. 22mm.

Objectives (Infinity corrected)

  • M Long working distance plan 5X
  • M Long working distance plan 10X
  • M Long working distance plan 20X
  • M Long working distance plan 50X
  • M Long working distance plan 100X (S.L.) Dry


Mechanical Body

  • Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
  • Quintuple nosepiece on ball bearing.
  • Mechanical stage is 210mm X 180mm and moving range 50mmX50mm
  • Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
  • Upper port with phototube for micro photography.


Standard Accessories
12V/50W halogen tungsten bulb, operating manual, dust cover, guarantee card and Styrofoam molded pack.

Optional Accessories
Polarizing/Analyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path.

(Available)
Quantity
Request A Quote Reach out to the supplier now

SKU:

Categories: Microscopes

Product Specification

BrandDewinter
Model Name/NumberDMI Victory
Mechanical Stage210mm X 180mm
Moving Range50mmX50mm
Interpupillary Distance53mm to 75mm
Eyepiece10X (paired) F.O.V. 22mm


Product Description

Trinocular Observation Head

  • Siedentopf observation head inclined at 45°.
  • Diopter adjustment ring on ocular tube (±5).
  • Inter-pupillary distance from 53mm to 75mm
  • Focusable vertical tube for Digital Microphotography.


Eyepiece (Anti fungus)
Wide yield10X (paired) F.O.V. 22mm.

Objectives (Infinity corrected)

  • M Long working distance plan 5X
  • M Long working distance plan 10X
  • M Long working distance plan 20X
  • M Long working distance plan 50X
  • M Long working distance plan 100X (S.L.) Dry


Mechanical Body

  • Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
  • Quintuple nosepiece on ball bearing.
  • Mechanical stage is 210mm X 180mm and moving range 50mmX50mm
  • Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
  • Upper port with phototube for micro photography.


Standard Accessories
12V/50W halogen tungsten bulb, operating manual, dust cover, guarantee card and Styrofoam molded pack.

Optional Accessories
Polarizing/Analyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path.
