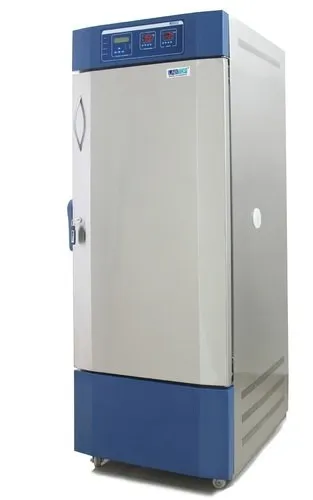

BOD INCUBATOR

₹125,000.00

Sold By: B V K Technology Services

Product Specification

Chamber Volume250 Litre
Temperature Range5 to 75 degree celsius
Voltage220 Volt
Warranty12 Months
Display TypeDigital
Power SourceElectric
ApplicationHospital, Clinical Purpose, Veterinary Purpose
LCD Display Size4x20 Inch
Minimum Order Quantity1


Product Description

FEATURES

Programmable logic microprocessor controller with LCD control panel with message centerContinuous product temperature Hi/Lo alarms, audible and visualProgrammable ramp soak feature2 levels of user password protection (set points and parameters)100 event alarm logging including Date/Time Stamp and product temperatures. Stored in non volatile flash memory Integrated Hi/Lo alarm testsPower failure alarmRemote alarm contactsProportional control and capacity outputWhite interior, exterior, door and handle 4 wire shelves (1st and 3rd shelves are adjustable)Streamlined refrigeration design optimizes air flow and temperature uniformitySelectable on demand auto defrostKey lock door2 adjustable leveling legsInterior LED light1” diameter access port with plug6 full width door storage compartmentsComplete cabinet is foamed-in-place with CFC free high density polyurethane foam insulation










  • Send Inquiry
    Name of EquipmentLABTOP® Micro Controller Based Cooling (BOD) Incubator
    Control SystemMicro controller based temperature indicator cum Controller with digital display and PT 100 sensor
    AlarmAudio Visual Alarm if the temperature deviates from the preset temperature
    Refrigeration SystemHermetically Sealed CFC Free Emerson Compressor with R 134a refrigerant
    Air CirculationMotor and blower arrangement to have uniformity of Temperature under loaded condition.
    Heating SystemU shaped S.S. Nichrome wire air heaters
    Insulation3” Thick CFC free PUF Insulation.
    LightingInterior illumination for working area.
    Observation DoorInside see through unbreakable acrylic door
    Validation Port50 mm validation Port with silicon rubber seal to insert sensor for validation purpose
    TraysStainless Steel perforated trays.
    OtherCastor wheels, MCB, Adjustable Tray Height arrangement. Heavy duty latch with lock & key
    PowerWorks on 230 V AC single phase 50Hz.
    Safety feature1. Additional safety thermostat to cut off the equipment in case of overshoot of temperature.
2. Password protected keypad
3. 180 seconds time delay for compressor
    CertificationISO 9001: 2008 , ISO 13485:2012
    DocumentationLABTOP will provide IQ, OQ, PQ documents with Material Test Certificates and Calibration reports
